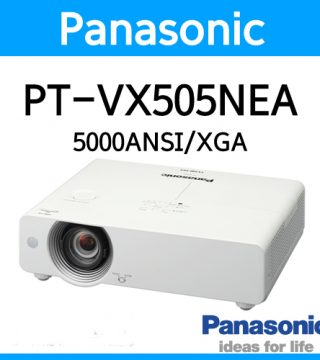

Projector Panasonic PT-VX505N

Panasonic PT-VX505NEA

• Brightness: 5000 lumens; Contract ratio: 4000:1
• 0.63″ 4:3 (x3) LCD panel
• Resolution: 1024 x 768 (True XGA)
• Air filter needs no replacement for 4,000 hours (in Eco mode)
• 1.6X zoom lens
• HDMI/S-Video/Video/ RGB/Audio in
• IEEE802.11b/g/n Wired LAN Control
• Project images from up to 16 PCs at the same time with wireless function
• 5000 Hours Lamp

• General	Power supply		100-240 V AC, 50/60 Hz
  	Power consumption		365 W (0.3 W when standby mode set to Eco*1, 12.9 W when standby mode set to Network.)
  	LCD panel	Panel size	16 mm (0.63 inches) diagonal (4:3 aspect ratio)
  		Display method	Transparent LCD panel (x 3, R/G/B)
  		Pixels	786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
  	Lens		1.6x manual zoom (throw ratio: 1.18-1.90:1), manual focus, F 1.60-2.12, f 15.28-24.62 mm
  	Lamp		280 W x 1, lamp replacement cycle (lamp power: Normal/Eco): 2,500 hours/4,000 hours*2
  	Screen size (diagonal)		0.76-7.62 m (30-300 inch), 4:3 aspect ratio
  	Brightness*3		5,000 lm (lamp power: Normal)
  	Center-to-corner uniformity*3		85 %
  	Contrast*3		4,000:1 (full on/full off, lamp power: Normal, Iris: On)
  	Resolution		1,024 x 768 pixels*4
  	Scanning frequency	HDMI	fH: 25-80 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower
  		RGB (analog)	fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 140 MHz or lower (Signals exceeding the dot clock rate of 140 MHz are downsampled.)
  		YPBPR (YCBCR)	fH: 15.75 kHz, fV: 60 Hz [480i(525i)] fH: 31.50 kHz, fV: 60 Hz [480p(525p)] fH: 45.00 kHz, fV: 60 Hz [720(750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i] fH: 15.63 kHz, fV: 50 Hz [576i(625i)] fH: 31.25 kHz, fV: 50 Hz [576p(625p)] fH: 37.50 kHz, fV: 50 Hz [720(750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i]
  		Video/S-Video	fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  	Optical axis shift		Vertical: +40 %
  	Keystone correction range		Vertical: ±30° (±20° when Real-Time Keystone)
  	Installation		Ceiling/floor, front/rear
  	Terminals	HDMI IN	HDMI 19-pin x 1 (Deep Color, compatible with HDCP) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200), *5 audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
  		COMPUTER IN 1	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
  		COMPUTER IN 2 / MONITOR OUT	D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu) (When Monitor Out is selected, the COMPUTER IN 1 signal is output.)
  		VIDEO IN	RCA pin x 1 (Composite VIDEO)
  		S-VIDEO IN	Mini DIN 4-pin x 1 (S-VIDEO)
  		AUDIO IN	RCA pin x 2 (L/R x 1) for VIDEO/S-VIDEO input
  		COMPUTER AUDIO IN 1	M3 x 1 (L-R x 1)
  		COMPUTER AUDIO IN 2 (MIC IN)	M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
  		AUDIO OUT	M3 x 1 (L-R x 1) for output (variable)
  		SERIAL IN	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  		LAN	RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™ (class 1))
  		USB A	USB type-A (for the USB Memory Viewer) x 1
  		USB B	USB type-B (for the USB Display/Wireless Mouse) x 1
  	Built-in speaker		4 cm round shape x 1, output power: 10.0 W (monaural)
  	Noise level		37 dB (lamp power: Normal), 29 dB (lamp power: Eco)
  	Cabinet materials		Molded plastic
  	Dimensions (W x H x D)		379 x 107 x 305 mm (14.9” x 4.2” x 12.0”) (with legs at shortest position, not including protruding parts)
  	Weight		Approximately 4.8 kg (10.6 lbs)
  	Operating temperature		0°C-40°C [32°F-104°F]*6 (less than 1,200 m [3,937 ft] above sea level, Fan control: OFF), 0°C-30°C [32°F-86°F] (between 1,200 m and 2,000 m [3,937 ft and 6,562 ft] above sea level, Fan control: ON1), 0°C-30°C [32°F-86°F] (between 2,000 m and 2,700 m [6,562 ft and 8,858 ft] above sea level, Fan control: ON2)
  	Operating humidity		20 %-80 % (no condensation)
  	Wireless	Standard	IEEE802.11b/g/n
  		Infrastructure mode	WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), 128 bit/64 bit WEP, WPA-EAP/WPA2-EAP (PEAP[MS-CHAPv2/GTC], EAP-FAST [MS-CHAPv2/GTC], EAP-TTLS[MD5/MS-CHAPv2])
  		Ad-hoc mode*7	128 bit/64 bit WEP
  	Supplied accessories		Power cord x 1*8, power cord holder x 1, wireless remote control unit, batteries (AAA/R03/LR03 type x 2), carrying bag x 1, computer cable (1.8 m, for VGA) x 1 Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software, Wireless Manager ME 6.0)
  NOTE			*1: When the Standby mode is set to Eco, network functions such as standby on via LAN are not available. Also, only certain commands can be received for external control using the serial terminal. *2: The values given for the recommended lamp replacement cycles are maximum. *3: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *4: Input signals that exceed this resolution will be converted to 1,024 x 768 pixels. *5: Compliant with VESA CVT-RB. *6: When the ambient temperature is between 35 °C and 40 °C (95 °F and 104 °F), the lamp power should be set to Eco. *7: Not supported by IEEE802.11n. *8: Power cords available (x 2) for the PT-VX505NEA/VX500EA.
