Projector Panasonic PT-DX610

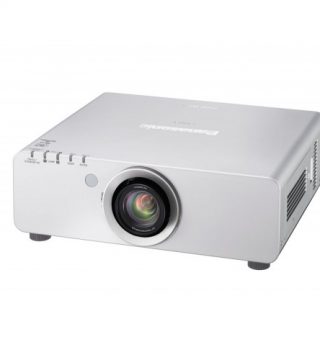

Panasonic PT-DX610

• 0.7″ 4:3 DLPTM panel
• Brightness: 6500 lumens; Contract ratio: 2000:1
• Resolution: 1024 x 768 (XGA)
• Easy one touch lens replacement for lens with different throw distance
• Various input: Video/S-Video/RGB(YPbPr)/DVI-D/HDMI/Serial/Remote/LAN
• Multi-screen support system
• Dual lamp system, can use only one lamp for longer lamp life
• Liquid cooling system for long operation hours

• Model		PT-DX610ES
  Power supply		120 V AC, 6.8 A, 50/60 Hz, 220-240 V AC, 3.8 A, 50/60 Hz
  Power consumption	120 V AC	710 W (740 VA) (0.2 W when STANDBY MODE set to ECO*1, 6 W when STANDBY MODE set to NORMAL)
  	220-240 V AC	690 W (860 VA) (0.3 W when STANDBY MODE set to ECO*1, 8 W when STANDBY MODE set to NORMAL)
  DLP™ chip	Panel size	17.8 mm (0.7 inches) diagonal (4:3 aspect ratio)
  	Display method	DLP™ chip x 1, DLP™ projection system
  	Pixels	786,432 (1,024 x 768) pixels
  Lens	PT-DZ680/DW640/DX610	Powered zoom (throw ratio 1.8-2.4:1), powered focus F 1.7-2.0, f 25.6-33.8 mm
  	PT-DZ680L/DW640L/DX610L	Optional powered zoom/focus lenses and fixed-focus lens
  Lamp		280 W UHM lamp x 2
  Screen size (diagonal)		1.27-15.24 m (50-600 inches), 1.27-5.08 m (50-200 inches) with the ET-DLE055, 4:3 aspect ratio
  Brightness*2		6,500 lm (dual-lamp, LAMP MODE: NORMAL)
  Center-to-corner uniformity*2		0.9
  Contrast*2		2,000:1 (full on/full off, CONTRAST MODE: HIGH*4)
  Resolution		1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.)
  Scanning frequency	HDMI/DVI-D	fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 25-162 MHz
  	RGB	fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower
  	YPBPR (YCBCR)	fH: 15.75 kHz, fV: 60 Hz [480i (525i)] fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 15.63 kHz, fV: 50 Hz [576i (625i)] fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p] fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
  	Video/S-Video	fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  Optical axis shift*5	Vertical	+50% from center of screen (powered)*6
  	Horizontal	±10% from center of screen (powered)
  Keystone correction range		Vertical: ±40 ° (±30 ° with the ET-DLE055/DLE080)
  Installation		Ceiling/floor, front/rear
  Terminals	HDMI IN	HDMI 19-pin x 1 (Deep Color*7, compatible with HDCP) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*8, compatible with non-interlaced signals only, dot clock: 25-162 MHz
  	DVI-D IN	DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*8, compatible with non-interlaced signals only, dot clock: 25 -162 MHz
  	RGB 1 IN	BNC x 5 (RGB/YPBPR/YCBCR x 1)
  	RGB 2 IN	D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
  	VIDEO IN	BNC x 1 (composite video)
  	S-VIDEO IN	Mini DIN 4-pin x 1 (S-Video)
  	SERIAL IN	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  	SERIAL OUT	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
  	REMOTE 1 IN	M3 x 1 for wired remote control
  	REMOTE 1 OUT	M3 x 1 for link control (for wired remote control)
  	REMOTE 2 IN	D-sub 9-pin (female) x 1 for external control (parallel)
  	LAN	RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
  Cabinet materials		Molded plastic
  Dimensions (W x H x D)	PT-DZ680/DW640/DX610	498 x 175*9 x 440 mm (19-19/32 x 6-7/8*9 x 17-5/16 in)(with supplied lens)
  	PT-DZ680L/DW640L/DX610L	498 x 175*9 x 432 mm (19-19/32 x 6-7/8*9 x 17 in) (without lens)
  Weight*10	PT-DZ680/DW640/DX610	Approximately 16 kg (35.3 lbs) (with supplied lens)
  	PT-DZ680L/DW640L/DX610L	Approximately 15.1 kg (33.3 lbs) (without lens)
  Operating environment		Operating temperature: 0-45 °C (32-113 °F)*11, operating humidity: 20-80 % (no condensation)
  Supplied accessories		Power cord, power cord secure lock, wireless/wired remote control unit, batteries (R6/AA type x 2), software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) (x 1)
