Epson EB-Z9870U

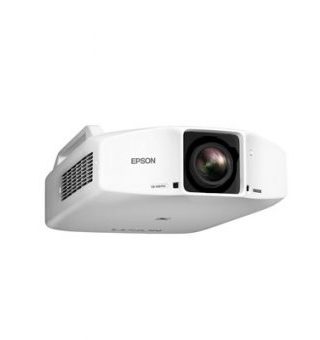

Projector Epson EB-Z9870U

EB–Z9870U adalah proyektor instalasi mengesankan dan serbaguna, menampilkan 8.700 lumens brightness dan resolusi WUXGA. Mampu memproyeksikan gambar aspek potret untuk signage digital, EB–Z9870U memiliki sudut instalasi yang fleksibel, pergeseran lensa untuk off–pusat posisi dan banyak pilihan kalibrasi, dengan opsional konektivitas Wi–Fi dan HDBaseT.

SPESIFIKASI

Technology

• Projection System : 3LCD Technology, RGB liquid crystal shutter
• LCD Panel : 1.03 inch with C2 Fine


• Colour Light Output : 8,700 Lumen-6,600 Lumen (economy)
• White Light Output : 8,700 Lumen – 6,600 Lumen (economy)
• Portrait Colour Light Output : 7,500 lm
• Portrait White Light Output : 7,500 lm
• Resolution : WUXGA, 1920 x 1200, 16:10
• Aspect Ratio : 16:10
• Contrast Ratio : 15,000 : 1
• Lamp : 380 W, 2,500 h durability, 4,000 h durability (economy mode)
• Lamp (portrait mode) : 1,000 Hours Durability, 304 Watt
• Keystone Correction : Manual vertical: ± 30 °, Manual horizontal ± 30 °

Optical

• Projection Ratio : 1.57 – 2.56:1
• Zoom : Motorized, Factor: 1 – 1.61
• Lens : Optical
• Lens Shift : Motorized – Vertical ± 60 %, horizontal ± 18 %
• Projection Size : 60 inches – 500 inches
• Projection Distance Wide : 2 m – 17.2 m
• Projection Distance Tele : 3.3 m – 27.8 m
• Projection Lens F Number : 1.65 – 2.51
• Focal Distance : 36 mm – 57.5 mm
• Focus : Motorized

Connectivity

• Interfaces : HD-SDI, HDBaseT, S-Video in, BNC in (6x), Component in, Composite in, HDMI in, DVI in, VGA out, VGA in, Wireless LAN IEEE 802.11b/g/n (optional), WLAN, RS-232C, USB 2.0 Type B (Service Only), USB 1.1 Type A

Advanced Features

• Security : Kensington lock, Security cable hole
• Video Colour Modes : Dynamic, Photo, Presentation, sRGB, Theatre, DICOM SIM

General

• Energy Use : 948 Watt, 788 Watt (economy), 0.37 Watt (standby)
• Supply Voltage : AC 100 V – 240 V,50 Hz – 60 Hz
• Product dimensions : 741‎ x 534 x 197 mm (Width x Depth x Height)
• Product weight : 26 kg
• Noise Level : Normal: 39 dB (A) – Economy: 35 dB (A)
• Temperature : Storage -10° C – 60° C
• Humidity : Operation 20% – 80%, Storage 10% – 90%
• Included Software : EasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection
• Options : Document camera, Quick wireless USB key, Wireless LAN unit
• What’s in the box : Computer cable, HDMI Cable Clamp, Power cable, Remote control incl. batteries, User’s Manual Set

Other

• Warranty : 36 months Carry in or 20,000 h, Lamp: 12 months or 1,000 h
