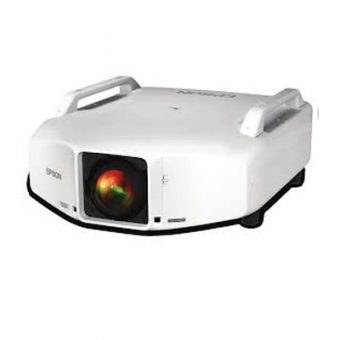

Epson EB-Z9900WNL

Projector Epson EB-Z9900WNL

SPESIFIKASI

TECHNOLOGY

• Projection System : RGB liquid crystal shutter projection syste
• LCD Panel : 1.03-inch wide panel with MLA  (D8, C2 Fine)

OPTICAL

• Zoom : 1 – 1.61 (Optical)
• Screen Size :
  60″ to 500″ [1.99m to 17.17m] (Zoom: Wide)
  60″ to 500″ [3.26m to 27.77m] (Zoom: Tele)
• Projection Distance : 100″ screen 3.37 m – 5.49 m
• Throw Ratio : 1.57 (Zoom:Wide), 2.56 (Zoom:Tele)
• Projection Lens F Number : 1.65 – 2.51
• Projection Lens Focal Length : 36.00mm-57.35mm
• Focus Method : Powered


• Colour Light Output : 9,200 Lumens
• White Light Output : 9,200 Lumens
• Resolution : WXGA
• Native Aspect Ratio : 16:10
• Contrast Ratio : 15,000:1
• Lamp Hours :
  2,500 hours (Normal (5) Std-Lamp x 2)
  4,000 hours (ECO Std-Lamp x 2)
  1,000 hours (Portrait Lamp x 2)
• Lamp Type :
  380 W UHE x 2 For Std-Lamp
  304 W UHE x 2 For Portrait Lamp
• Keystone Correction (With Std Lens) :
  Vertical: -30 to +30 degrees
  Horizontal: -30 to +30 degrees
• Lens Shift :
  Vertical: -60% to +60% (Powered)
  Horizontal: -18% to +18% (Powered)
  Tilt Angle : -3.5 to 3.5 degrees

CONNECTIVITY

• Input: Video : 1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
• Input: Computer : 1x D-sub 15-Pin (RGB)
• Input: Digital : 1 x HDMI, 1 x DVI-D
• Input: Control : 1 x RS232c, 1 x Stereo mini-jack (Remote)
• Input: Network I/O : 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
• Input: HDBaseT : 1 x RJ45
• Wireless Connectivity : Optional
• Output: Video : 1 x Monitor Out (via D-sub 15-pin)

GENERAL

• Dimensions D x W x H (Including Feet) : 741 × 534 × 255 mm
• Weight : Approx. 25kg (Including Std Lens)
• Noise Level – 2 Lamps : Normal/Eco: 38/35 dB
