Projector VIEWSONIC PA500S

PA500S

3600 ANSI lumen SVGA DLP Projector for Small Spaces

The ViewSonic PA500S projector for presentations offers impressive visual performance in small sized meeting rooms and classrooms. Packed with up to 3600 ANSI Lumens of brightness and a 22,000:1 contrast ratio, the PA500S projector is guaranteed to project the finest of details, even in brightly lit environments. ViewSonic’s exclusive SuperColor™ technology offers wide gamut color coverage that produces true-to-life image color for realistic and engaging image projection. Users can unlock 3D capabilities with 3D-ready technology. PA500S also comes with an energy efficient SuperEco feature which reduces lamp power consumption by up to 70%, and extends the lamp life to 15,000 hours on average.

• SPECIFICATION
  Projection System : 0.55″ SVGA
  Native Resolution : 800×600
  DC Type : DC3
  Brightness : 3600 ANSI lumens
  Contrast Ratio With SuperEco Mode : 22000:1
  Display Color : 1.07 Billion Colors
  Light Source : Lamp
  Light Source Life (Nor/SuperEco) : 5000/15000
  Lamp Watt : 190W
  Lens : F=2.56-2.68, f=22-24.1 mm
  Projection Offset : 120%+/-5%
  Throw Ratio : 1.96~2.15
  Image Size : 30″ – 250″
  Throw Distance : 1.19m-13.11m(100″ @3.98m)
  Keystone : ±40° (Vertical)
  Optical Zoom : 1.1x
  Audible Noise (Eco) : 29dB
  Resolution Support : VGA(640 x 480) to FullHD(1920 x 1080)
  HDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Video Compatibility : NTSC, PAL, SECAM
  Horizontal Frequency : 15K~102KHz
  Vertical Scan Rate : 23~120Hz
  Interactive Camera : NA
• INPUT
  Computer In (share With Component) : 2
  Audio-in (3.5mm) : 1
• OUTPUT
  Monitor Out : 1
  Audio Out (3.5mm) : 1
  Speaker : 2W
• CONTROL
  RS232 : 1
  USB Type Mini B (Services) : 1
• OTHERS
  Power Supply Voltage : 100-240V+/- 10%, 50/60Hz AC
  Power Consumption : Normal: 260W
  Standby: <0.5W
  Operating Temperature : 0~40℃
  Carton : Brown
  Net Weight : 2.2kg
  Dimensions (WxDxH) W/adjustment Foot : 294x218x110mm
  Language : English, France, Spanish, Thai, Korea, Germany, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnam
• STANDARD ACCESSORY
  Power Cord : 1
  VGA Cable : 1
  Remote Control : 1
  QSG & CD : 1
• OPTIONAL ACCESSORY
  Air Filter : RSPL

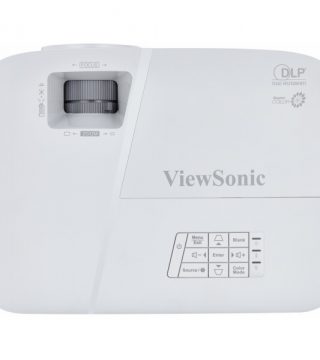

Exterior & Rear I/O Connectors

1. Keypad
2. LED indicator
3. Lamp cover
4. Security lock
5. Zoom/Focus
6. Front IR
7. Projection Lens
8. Audio in/out
9. Dual VGA
10. VGA out
11. Mini USB
12. Kensington® Lock Slot
13. RS232
