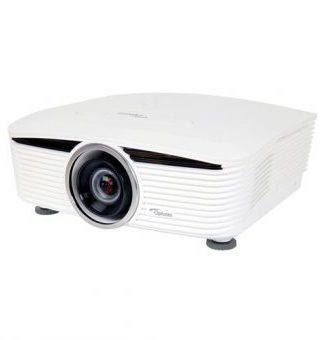

Projector Optoma EH-505

The EH505 is a product designed exclusively for demanding professional applications. WUXGA and 5000 lumens delivers bright crystal clear images with ultimate reliability, while 24/7 operation ensures that this is a projector on which you can rely. The dust-sealed, filter free design prevents dust and dirt from affecting the system ensuring optimal image quality with minimal maintenance. Full lens shift combined with the multiple lens options provide installation flexibility for simple, trouble free installations.
5000 lumens, WUXGA Resolution
– Installation flexibility – Lens shift, interchangeable lenses, off-axis short throw option
– Ultimate Control – Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
– Powerful Image Blending Tools – 3-axis colour matching system and 10x lamp-power steps
– Advanced features – Wired Remote, Full 3D Support and DICOM simulation

Spesifikasi

• Weergavetechnologie : DLP™ Technology by Texas Instruments, 0.67” WUXGA, DC3,Type A chip
• Resolutie (native) : WUXGA 1920 x 1200
• Brightness1 (Bright Mode) : 5000 ANSI Lumens
• Contrast : 2000:1
• Lamp Life2 Eco/Bright : 3500/1500 (hrs)
• Lensmogelijkheden :
  Short: 0.77:1 (Fixed)
  Semi Short: 1.1 – 1.3:1 (1.18x zoom)
  Standard: 1.54~1.93:1 (1.25x zoom)
  Long: 1.93~2.89:1 (1.5x zoom)
  Extra Long: 3.0 – 5.0 (1.67x zoom)
  Throw ratio 3 : 0.77 ~ 5.0 “Lens dependent”
• Zoom Type : Dependent upon lens
• Lensshift : Max. Lens Shift -15 to +55% V, ±5% H (Manual)
• Input-/outputconnectoren : HDMI (1.4a 3D support), DVI-D, DisplayPort, 5BNC, Component Video, 2 x VGA (RGB/YPbPr), S-Video, Composite, 5 x Audio In (RCA/3.5mm), Audio Out 3.5mm, VGA Out, RJ45, RS232, USB (Remote Mouse), +12v Trigger, Wired Remote, 3D-Sync
• Speaker : 3
• Audio : 3W
• Keystone correctie : ± 40° Vertical
• Gewicht : 8.6 (without lens)
• Afmetingen (B x D x H) (mm) : 431 x 341 x 183
• Beeldverhouding : 16:10 Native, 16:9/4:3 Compatible
• Grootte projectiescherm : Dependent upon lens
• Projectie-afstand : Dependent upon lens
• Projectielens : 5 x lens Options “no lens supplied as standard”
• Uniformiteit : 85% (centre)
• Maximale resolutie : Native WUXGA (1920 x 1200)
• Computercompatibiliteit : WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
• Videocompatibiliteit : PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
• 3D-ondersteuning :
  Mandatory HDMI 1.4 3D formats,
  120Hz frame sequential (up to 720p)
  3D-kijkervaring Requires : 3D Glasses – supplied separately.
  Horizontale scansnelheid : 15kHz to 91kHz
  Verticale scansnelheid : 24Hz to 85Hz (120Hz for 3D playback)
• Kleurbereik : 16.7 Million
• Geluidsniveau : 37dB
• Stroomvoorziening : 100 – 240V AC @ 50 – 60Hz
• Stroomverbruik : 460W (max) bright mode, <0.5w standby mode
• Lamp Type : 370W
• Gebruiksomstandigheden : 5 ~ 40˚C, max. humidity 85%, max. altitude 3000m
• Omgevingstemperatuur bij gebruik :
  0 ~ 750m, 5 ~ 45˚C
  750m ~ 1500m, 5 ~ 35˚C
  1500 ~ 3000m, 5 ~ 30’C
• Beveiliging : 4-digit PIN code, Kensington Lock port, Security Bar
• On Screen Display : 19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Turkish, Romanian, Farsi, Arabic
• Afstandsbediening : Infra-red remote control, Multiple IR code sets for controlling multiple units, Wired connection sup
• Standaard accessoires : VGA cable, AC power cord, Infra-red remote control, Batteries x 2, Quick start card, WEEE card, Warranty card
• Optional Wireless : Ja
• Conformiteiten : CE, TUV-GS, CB
• RoHS : RoHS and WEEE
• Features : “5 x Optional Lens [Short/STD/Long], Full Lens Shift, Crestron RoomView®, PJ-Link, Available in Black and White
