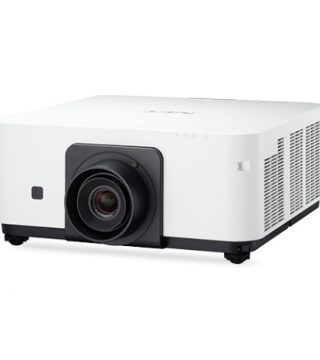

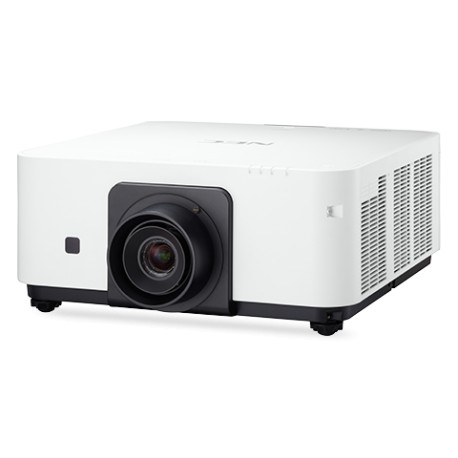

Projector NEC P502HLG

The P502HLG is the world’s most compact 5,000 ANSI lumen project or with a laser light source. The new laser technology allows up to 20,000 hours maintenance free operation, ensuring high reliability and low cost of ownership.

The large 1.7x optical zoom and the vertical and horizontal lens shift and keystone correction allow flexible integration and easy replacement on existing ceiling mounts. State of the art connectivity including advanced wireless options, HDBaseT and 2xHDMI with 3D support ensure a futureproof investment.

This projector is ideal for auditoriums, large meeting rooms and classrooms, museum spaces and signage applications, projecting a screen size of up to 300”.


 Projection Technology                                        : 1-chip DLP™ Technology

Native Resolution                                                   : 1920 x 1080 (Full HD)

Aspect Ratio                                                              : 16:9

Contrast Ratio                                                          : 150000:1

Brightness                                                                 : 5000 ANSI Lumen

Lamp                                                                           : Laser Light Source

Lamp Life [hrs]                                                       : 20000

Lens                                                                             : F= 2–2.5, f= 18.2–31.1 mm

Lens shift                                                                   : H:±0.25, V:+0.62,-0

Lens Offset [%]                                                         : 0-62

Keystone correction                                               : +/- 25° manual horizontal / +/- 30° manual vertical

Projection Factor                                                     : 1.24 – 2.1 : 1

Projection Distance [m]                                        :  0.8 – 14.2

Screen Size (diagonal) [cm] / [inch]                : Maximum: 762 / 300″; Minimum: 76.2 / 30″

Zoom                                                                            : Manual; x1.7

Focus Adjustment                                                   : Manual

Supported Resolutions                                         : 1920×1200 (Maximum resolution of analog input); 1920 x 1080 (Maximum resolution of digital input)

Frequency                                                                  : Horizontal: 15–100 kHz (RGB: 24 kHz); Vertical: 50 – 120 Hz

 CONNECTIVITY :

RGB (analog) :

Input: 1 x Mini D-sub 15 pin

Output: 1 x Mini D-sub 15 pin

Digital                                                                          : Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP

Video                                                                            : Input: 1 x RCA

 Audio  :

Input: 1 x 3.5 mm Stereo Mini Jack for Computer analog; 1 x RCA Stereo for Video; 2 x HDMI audio

Output: 1 x 3.5 mm Stereo Mini Jack (variable)

Control                                                                         : Input: 1 x D-Sub 9 pin (RS-232) (male)

LAN                                                                               : 1 x RJ45; Optional WLAN

USB                                                                               : 1 x Type B (for Service); 2 x Type A (USB 2.0 high speed)

3D Sync                                                                        : Output: 1 x Mini DIN 3pin

Video Signals                                                             : NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

 REMOTE CONTROL :

 Remote Control

Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Keystone Correction; Magnifyfunction; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select

 ELECTRICAL  :

 Power Supply                                                          : 100-240 V AC; 50 – 60 Hz

Power Consumption [W]                                     : 442 (High Bright) / 347 (Eco) / 2 (Network Stand-by) / 0.3 (Stand-by)

 MECHANICAL

Dimensions (W x H x D) [mm]                          : 469 x 137 x 365 (without lens and feet)

Weight [kg]                                                               : 8.8

Fan Noise [dB (A)]                                                  : 33 / 39 (Eco / Normal)

 Speakers [W]                                                              : 1x 20 (mono)
