Laser-sharp images

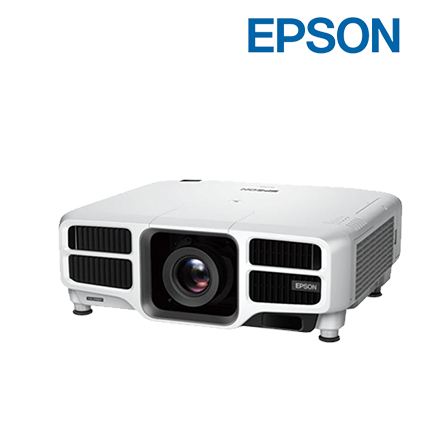

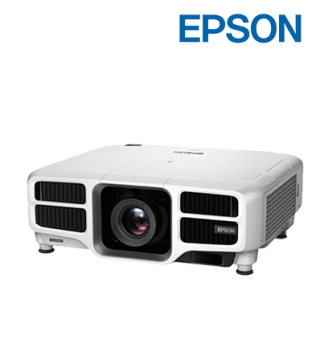

Ensure superb quality and the best possible delivery of presentations with this laser installation projector for large venues. Featuring 3LCD technology and equally high White and Colour Light Output, its WUXGA resolution images are vivid and bright, even in daylight. Including a newly developed inorganic phosphor wheel, the projector offers superior light and heat resistance to deliver excellent reliability. For a next-level viewing experience, the projector features 4K enhancement, giving images exceptional sharpness and clarity that lasts for up to 83,000 hours¹ thanks to a long laser life. A built-in camera is also included to ensure accurate image calibration.

SPESIFIKASI :

• Projection System                                                     : 3LCD Technology

  LCD PaneL                                                                   : 0.76 inch with C2 Fine

• Colour Light Output                                                 : 7,000 Lumen- 4,900 Lumen (economy) In accordance with IDMS15.4

  White Light Output                                                  : 7,000 Lumen – 4,900 Lumen (economy) In accordance with ISO 21118:2012

  Portrait Colour Light Output                               : 7,000 lm

  Portrait White Light Output                                : 7,000 lm

  Resolution                                                                  : WUXGA, 1920 x 1200, 16:10

  High Definition                                                        : 4K enhancement

  Aspect Ratio                                                             : 16:10

  Contrast Ratio                                                         : 2,500,000 : 1

  Native Contrast                                                       : 2,000 : 1

  Light source                                                             : Laser

  Laser Light source                                                : 20,000 Hours Durability High, 30,000 Hours Durability Eco

  Keystone Correction                                           : Manual vertical: ± 45 °, Manual horizontal ± 30 °

  Colour Reproduction                                           : Upto 1.07 billion colours

• Projection Ratio                                                     : 1.44 – 2.32:1

  Zoom                                                                          : Motorized, Factor: 1 – 1.6

  Projection Lens Zoom Ratio                             : 1.44 – 2.32 : 1

  Lens                                                                            : Optical

  Lens Shift                                                                 : Motorized – Vertical ± 67 %, horizontal ± 30 %

  Lens position memory                                        : 10 positions

  Image Size                                                                : 50 inches – 300 inches

  Projection Distance Wide                                  : 1.5 m – 9.4 m

  Projection Distance Tele                                    : 2.5 m – 15.1 m

  Projection Distance Wide/Tele                        : 1.53 m – 15.1 m

  Projection Lens F Number                                 : 1.7 – 2.3

  Focal Distance                                                         : 24.02 mm – 38.24 mm

  Focus                                                                          : Motorized

• Interfaces

  Stereo mini jack audio in (3x), Stereo mini jack audio out, HDBaseT, BNC in, HDMI in, DVI in, VGA out, VGA in, Wired Network, RS-232C, USB 2.0 Type B (Service Only), Wireless LAN b/g/n (2.4GHz) (optional)

  Epson iProjection App                                         : Ad-Hoc / Infrastructure

• Security

  Kensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection

  Features

  4K enhancement, Absolute Black, Auto calibration, Built-in speaker, Customizable user logo, Frame interpolation, Lens position memory

  Video Colour Modes                               : Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection

  Projector control                                     : via: AMX, Crestron, Control4

• Energy Use

  566 Watt, 384 Watt (economy), 0.5 Watt (standby), On mode power consumption as defined in JBMS-84 384 Watt

  Supply Voltage                                           : AC 100 V – 240 V, 50 Hz – 60 Hz

  Product dimensions                                : 586‎ x 492 x 211 mm (Width x Depth x Height)

  Product weight                                          : 21 kg

  Noise Level                                                  : Normal: 34 dB (A) – Economy: 28 dB (A) (4K enhancement OFF)

  Temperature                                               : Storage -10° C – 60° C

  Humidity                                                      : Operation 20% – 80%, Storage 10% – 90%

  Included Software                                    : Epson Projector Management Software, EasyMP Multi PC Projection

  Options                                                          :  Quick wireless USB key, Wireless LAN unit

  What’s in the box                                      : CD Manual, Cable cover, VGA cable, Power and signal cable (3 m), Quick Start Guide, Remote control incl. batteries

  Colour                                                            : White
