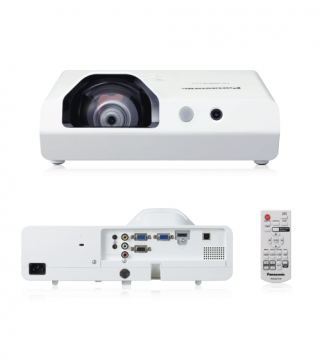

Projector Panasonic PT-TX210
Ditambahkan pada: 15 April 2016 / Kategori: Projector PANASONIC
Deskripsi Projector Panasonic PT-TX210
Projector Panasonic PT-TX210
Features
- LCD, XGA
- 2800 Lumens
- 10.000 : 1 Cont ratio
- 3.8 kg. Feature : HDMI input
- Lamp life up to 8000 hours & 5000 hours filter life
- 2-Watt speaker
- Short projection distance at 0.60 m(80 inch)
- Corne keystone correction
- Curved screen correction
- Memory viewer function
- USB display function
- Collor board & Blackboard mode
- ECO friendly design
Spesifikasi
| Power supply | 100-240 V AC, 50/60 Hz | |
| Power consumption | 300 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.) |
|
| LCD panel | Display method | Transparent LCD panel (x 3, R/G/B) |
| Drive method | Active matrix method | |
| Panel size | 16.0 mm (0.63 in) (4:3 aspect ratio) | |
| Pixels | 786,432 (1,024 x 768) pixels | |
| Lens | Fixed (0.46:1 throw ratio), manual focus F = 1.8, f = 6.08 mm | |
| Lamp | 230 W x 1, lamp replacement cycle (lamp control: Normal/Eco1/Eco2): 5,000 hours/6,000 hours/8,000 hours*2 |
|
| Screen size (diagonal) | 1.27-2.54 m (50-100 in), 4:3 aspect ratio | |
| Brightness*3 (Lamp power: Normal) |
2,800 lm | |
| Center-to-corner uniformity*3 | 80 % | |
| Contrast*3 | 10,000:1 (full on/off) (RGB signal input, Color mode: Dynamic, Lamp power: Normal) |
|
| Resolution | 1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.) |
|
| Scanning frequency | HDMI | fH: 15-91 kHz, fV: 24-85 Hz, dot clock: 162 MHz or lower |
| RGB (analog) | fH: 15-91 kHz, fV: 24-85 Hz, dot clock: 162 MHz or lower | |
| YPBPR(YCBCR) | fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)],fH: 15.63 kHz, fV: 50 Hz [576i (625i)],fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p],fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i],fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p],fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF],
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p], fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)], fH: 31.25 kHz, fV: 50 Hz [576p (625p)], fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p], fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i], fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p], fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p], fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] |
|
| Video/S-Video | fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/SECAM/PAL-N] |
|
| Optical axis shift | 21:1 (fixed) | |
| Keystone correction range | Vertical: ±15° (Auto, Manual) | |
| Installation | Ceiling/floor, front/rear | |
| Terminals | HDMI IN | HDMI 19-pin x 1 (compatible with HDCP, Deep Color) 480i,*4 480p, 576i,*4 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/30p, 1080/25p, 1080/24p, 1080/24sF, VGA (640 x 480)-WUXGA (1,920 x 1,200),*5 audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
| COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR /S-VIDEO x 1) (The D-Sub/S-VIDEO conversion cable ET-ADSV is required for inputting S-VIDEO signals.) |
|
| COMPUTER 2 IN/ MONITOR OUT |
– | |
| MONITOR OUT | D-sub HD 15-pin (female) x 1 | |
| VIDEO IN | Pin jack x 1 | |
| AUDIO 1 IN | M3 x 1 (L-R x 1) | |
| AUDIO 2 IN | Pin jack x 2 (L, R x 1) | |
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | |
| LAN | – | |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| USB A | – | |
| USB B | 1 (for service only) | |
| Built-in speaker | 2 W (monaural) x 1 | |
| Cabinet materials | Molded plastic (PC) | |
| Dimensions (W x H x D) | 335 x 134.1*6 x 329 mm (13-3/16 x 5-9/32*6 x 12-15/16 in) | |
| Weight*7 | Approximately 3.8 kg (8.4 lbs) | |
| Operation noise*3 | 37 dB (Lamp power: Normal), 33 dB (Lamp power: Eco1), 28 dB (Lamp power: Eco2) | |
| Operating temperature | 5°C-40°C (41°F-104°F) (less than 1,400 m [4,593 ft] above sea level), 5°C-35°C (41°F-95°F) (between 1,400 m and 2,700 m [4,593 ft and 8,858 ft] above sea level) |
|
| Operating humidity | 20-80 % (no condensation) | |
| Supplied accessories | Power cord x 1*8, Wireless remote control unit x 1, Batteries (AAA/R03/LR03 type x 2), Computer cable (1.5 m, for VGA) x 1 |
|
