EPSON EB-Z9870

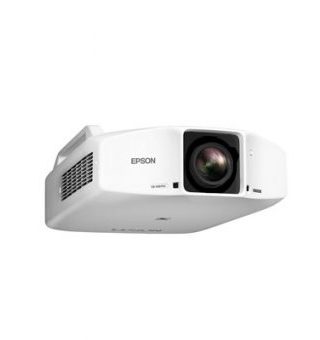

Projector EPSON EB-Z9870

EB-Z9870 adalah proyektor instalasi mengesankan dan serbaguna, menampilkan 8.700 lumens brightness dan resolusi XGA. Mampu memproyeksikan gambar aspek potret untuk signage digital, EB-Z9870 memiliki sudut instalasi yang fleksibel, pergeseran lensa untuk off-pusat posisi dan banyak pilihan kalibrasi, dengan opsional konektivitas Wi-Fi dan HDBaseT.
Technology

• Projection System : 3LCD Technology, RGB liquid crystal shutter
• LCD Panel : 1.06 inch with C2 Fine


• Colour Light Output : 8,700 Lumen-7,300 Lumen (economy)
• White Light Output : 8,700 Lumen – 7,300 Lumen (economy)
• Portrait Colour Light Output : 8,500 lm
• Portrait White Light Output : 8,500 lm
• Resolution : XGA, 1024 x 768, 4:3
• Aspect Ratio : 4:3
• Contrast Ratio : 15,000 : 1
• Lamp : 380 W, 3,000 h durability, 4,000 h durability (economy mode)
• Lamp (portrait mode) : 1,000 Hours Durability, 304 Watt
• Keystone Correction : Manual vertical: ± 30 °, Manual horizontal ± 30 °

Optical

• Projection Ratio : 1.65 – 2.65:1
• Zoom : Motorized, Factor: 1 – 1.61
• Lens : Optical
• Lens Shift : Motorized – Vertical ± 56 %, horizontal ± 19 %
• Projection Size     : 60 inches – 500 inches
• Projection Distance Wide : 1.9 m – 16.8 m
• Projection Distance Tele : 3.2 m – 27.2 m
• Projection Lens F Number : 1.65 – 2.51
• Focal Distance : 36 mm – 57.5 mm
• Focus : Motorized

Connectivity

• Interfaces : HDBaseT, S-Video in, BNC in (6x), Component in, Composite in, HDMI in, DVI in, VGA out, VGA in, Wireless LAN IEEE 802.11b/g/n (optional), WLAN, RS-232C, USB 2.0 Type B (Service Only), USB 1.1 Type A

Advanced Features

• Security : Kensington lock, Security cable hole
• Video Colour Modes : Dynamic, Photo, Presentation, sRGB, Theatre, DICOM SIM

General

• Energy Use : 809 Watt, 721 Watt (economy), 0.37 Watt (standby)
• Supply Voltage : AC 100 V – 240 V,50 Hz – 60 Hz
• Product dimensions : 741‎ x 534 x 197 mm (Width x Depth x Height)
• Product weight : 25 kg

Noise Level : Normal: 38 dB (A) – Economy: 35 dB (A)
