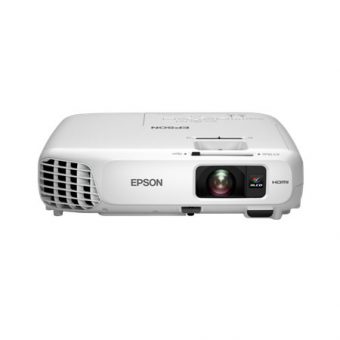

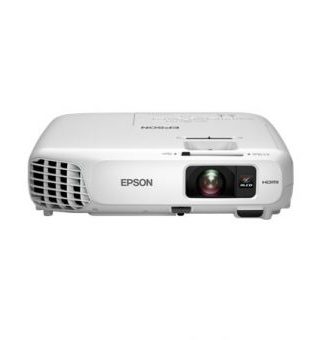

Epson EB-97

Projector Epson EB-97

Menggabungkan kualitas gambar dinamis dengan fleksibilitas yang luar biasa, EB–97 proyektor bisnis membanggakan kecerahan warna yang tinggi untuk memberikan proyeksi warna cerah dan realistis.

SPESIFIKASI

• Projection Technology : RGB liquid crystal shutter projection system (3LCD)
• Specifications of Main Parts

LCD

• Size : 0.55” without MLA (D8)
• Native Resolution : XGA

Projection Lens

• Type : Optical Zoom (Manual) / Focus (Manual)
• F-Number : 1.58 – 1.72
• Focal Length : 16.9 – 20.28 mm
• Zoom Ratio : 1 – 1.2
• Throw Ratio : 1.48 – 1.77 (Wide – Tele)

Lamp

• Type : 200W UHE
• Life*¹ (Normal/Eco) : 5,000 hours / 6,000 hours
• Screen Size (Projected Distance)
• Zoom : Wide : 30” – 300” [0.9 – 9.0 m]
• Zoom : Tele : 30” – 300” [1.08 – 10.8 m]
• Standard Size : 60” screen 1.8 – 2.17 m

Brightness*²

• Colour Light Output : 2,700lm
• White Light Output (Normal/Eco) : 2,700lm / 1,890lm
• Contrast Ratio : 10,000:1
• Internal Speaker(s)
• Sound Output : 16W Monaural
• Keystone Correction
• Vertical / Horizontal : ±30° / ±30°
• Auto Keystone Correction : Yes (Vertical)

Connectivity

• Analog Input
• D-Sub 15 pin : 2 (Blue)
• Component : D-Sub 15pin x 2 (Blue molding) (common with Analog RGB connector)
• Composite : RCA x 1 (Yellow)
• S-Video : Mini DIN x 1
• Digital Input : HDMI
• Network : Wired LAN
• Type : Normal (ELPAF32)

General

• Maintenance Cycle : 3,000 hours*4
• Power Supply Voltage : 100 – 240 V AC ±10%, 50/60 Hz
• Power Consumption (220 – 240V)
• Lamp On (Normal / Eco) : 287W / 215W
• Stand By (Network On / Off) : 3.1W / 0.29W
• Dimension Excluding Feet (D x W x H) : 244 x 297 x 87 mm
• Weight : 2.7kg
• Fan Noise (Normal / Eco) : 37dB / 29dB
